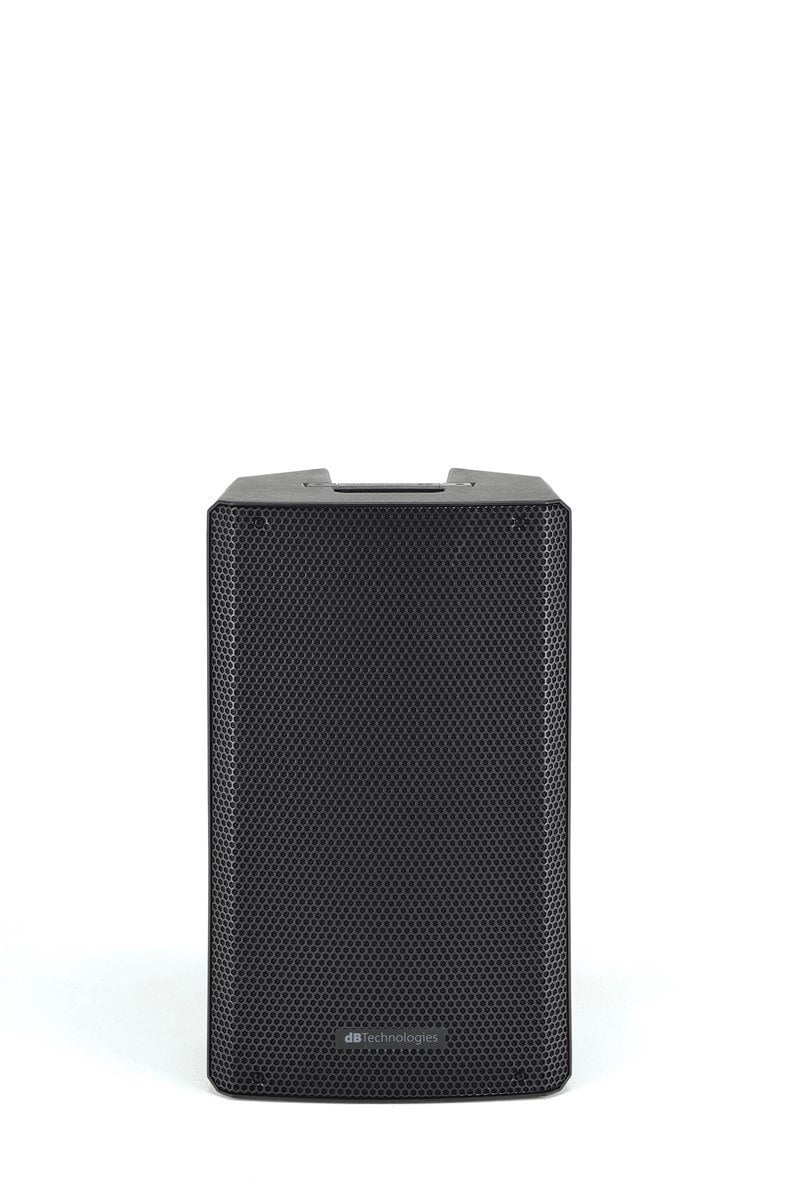

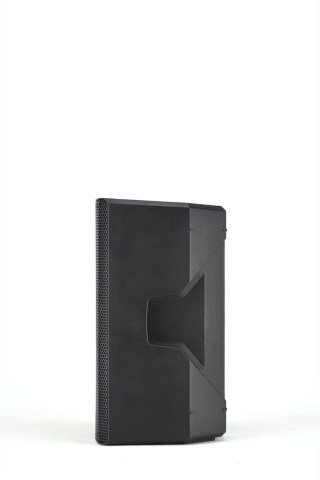

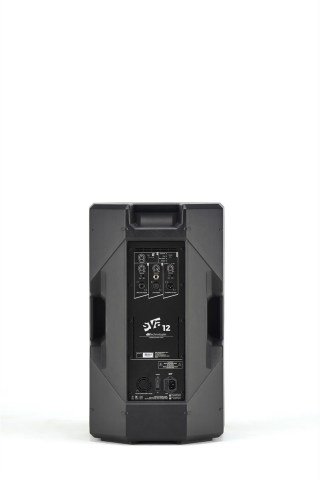

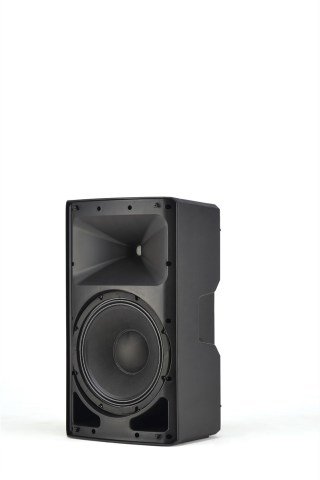

dB Technologies SYA 12 2-Yollu 12-inch 800 Watt Aktif Kabin Hoparlör

dB Technologies SYA 12 2-Yollu 12-inch 800 Watt Aktif Kabin Hoparlör

Active 2-way speakers

Bluetooth®connection

3 Channel IN

1 link OUT with link/mix switch

Linear Phase FIR Filters for accurate sound reproduction

DSP presets for wide versatility

Soft cover included

Technical Data

2-Way Active Speaker

Acoustical data

Frequency Response [-10dB]52 - 18.000 Hz

Max SPL127 dB

HF1" CD, 1.35"v.c

LF12", 2.5" v.c.

Dispersion90°x60°

Crossover Frequency1800 Hz (24 dB/oct.)

Amplifier

Amp TechnologyClass D(LF)+Class AB (HF)

Power Peak (LF+HF)800 W

Processor

Controls1xVolume, 1xslide switch mic/line

Indicatorspower on/signal/limiter LEDs

ControllerDSP 20/56 sit

AD/DA Converter24 bit/ 48 Hz

Systems PresetsPlayback, Flat, Bass Boost, Wedge

LimiterPeak, RMS, Thermal

Advanced DSP FunctionsLinear Phase FIR Filters

Input

Signal Input1x Combo(XLR/Jack)

Mic/Line

1xXLR/TRS

Bluetooth Input1xBluetooth receiver

SIGNAL Output1xXLR Male (LINK/MIX)

Mechanics

HousingPolypropylene

Handles3 (2 on side 1 on top)

Angles UpMonitor Use 45°

Pole Mount36 mm, double positioning

Width365 mm (14.37 in)

Height622 mm (24.50 in)

Depth342 mm (13.46 in)

Weight16.5 kg (36.37 lbs)
