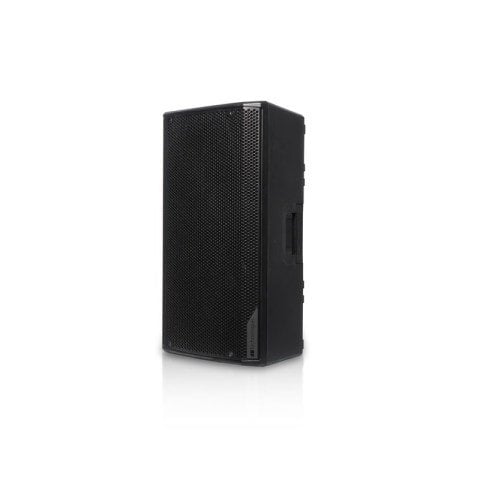

dB Technologies OPERA UNICA 12 1800 Watt Peak 12 inç Aktif Kabin Hoparlör

dBTechnologies OPERA UNICA 12 1800 Watt Peak 12 inç Aktif Kabin Hoparlör

Technical Data
Speaker Type2-Way Active Speaker

Acoustical data
Usable Bandwidth [-10dB]67 - 20.000 Hz
Frequency Response [- 6dB]73 - 20.000 Hz
Max SPL132 dB
HF1" Exit, 1.75 v.c.
Horizontal Directivity100° (85° up/120° down)
Vertical Directivity85° (+ 25°/-60°)
HornAsymmetrical Horn
LF12", 3" v.c.

Amplifier
Amp TechnologyClass D DigiproG3
RMS Power900 W
Peak Power1800 W

Processor
ControllerDSP 56 bit
AD/DA Converter24 bit/48 KHz
ControlsRotary Encoder (8 Presets)
1x Input Sensitivity
1x Power ON led
1x Signal led
1x Limiter Led
1x Status Led
CrossOver Frequency1600 Hz
LimiterPeak, RMS, Thermal
Advanced DSP FunctionsLinear Phase FIR Filters
Delay Option58.6 ms max (via RD Net)

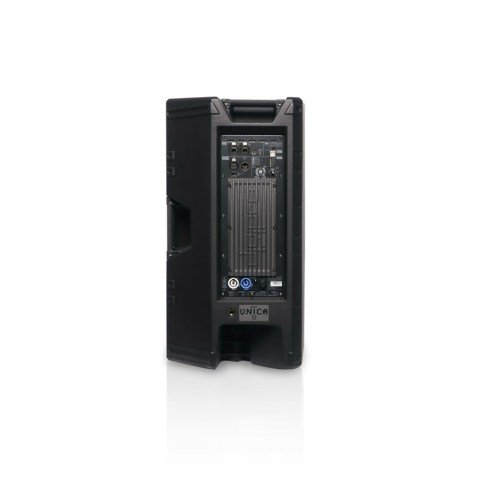

Input
Signal Input1x XLR Female
1x USB (data service)
Signal Output1x XLR Male

Mechanics
HousingPolyporpylene PP

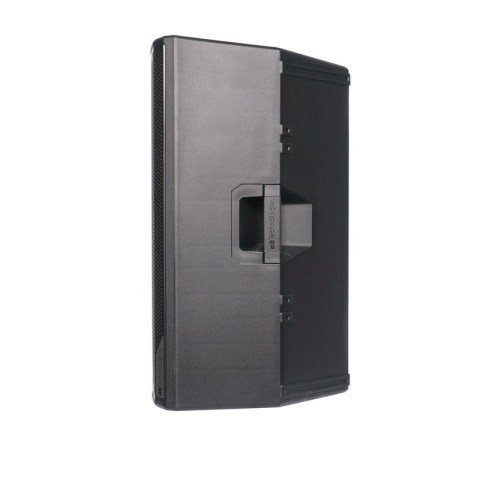

Handles1 on left Side, 1 on Top
Rigging Points2XM10 on Top + 1x M10 on Back
Pole MountD36 mm

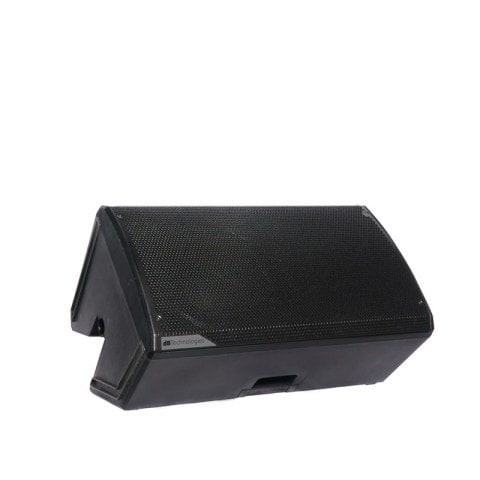

Angles upMonitor use 45°
Width350 mm (13.78 in)
Height642 mm (25.28 in)
Depth349 mm (13.74 in)
Weight15 kg (33.07 lbs)
